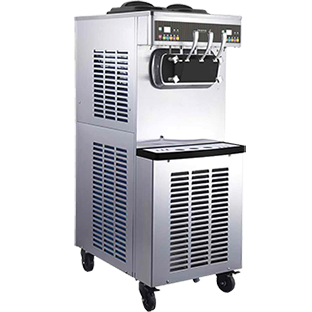

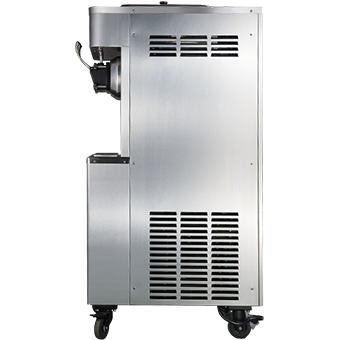

PASMO S520F with Air Pump
Born For Franchise Store
Watch Video
Product comparison

Loved By Franchise Store

Pasmo S520FAP is a Heavily used equipment, suitable for chain ice cream sellers with ice cream as the main project

which has high requirements for equipment continuity and product taste.


Dual Independent

System


High Expansion Rate

Delicate Taste


Gear Type Air Pump System

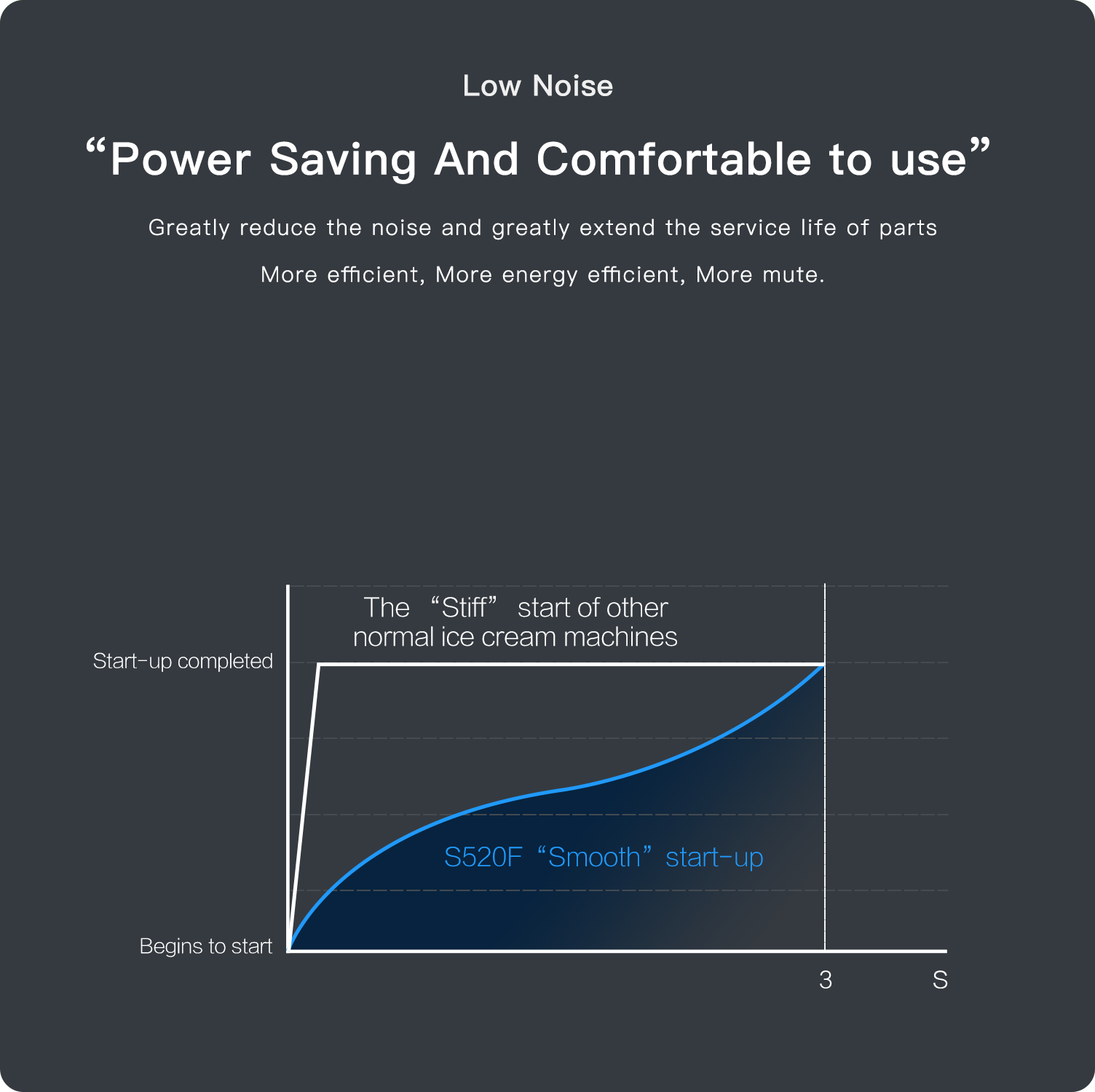

Intelligent Inverter Technology


Low Frozen Cylinder

Rate

undefined

Optional Configuration



Pasmo Pascal ice cream.jpg
Pasmo Pascal watermelon ice cream.jpg
Pasmo Pascal Hokkaido milk ice cream.jpg
Pasmo Pascal Matcha ice cream.jpg
Pasmo Pascal Blue sky ice cream.jpg
Pasmo Pascal frozen yogurt ice cream.jpg
Pasmo百世贸 巧克力冰淇淋.jpg
产品对比
Model S520FAP S520F S970F S970FAP S970T
Size Width:640mm
Depth:940mm
Height:1512mm
Width:640mm
Depth:940mm
Height:1512mm
Width:520mm
Depth:770mm
Height:1444mm
Width:520mm
Depth:770mm
Height:1444mm
Width:550mm
Depth:829mm
Height:1553mm
Weight 246Kg 226Kg 226Kg 246Kg 280Kg
Spreading Heat Way Air Cooling or Water Cooling Air Cooling or Water Cooling Air Cooling or Water Cooling Air Cooling or Water Cooling Air Cooling
Voltage Type 220V-50Hz
380V-50Hz
220V-50Hz
380V-50Hz
220V-50Hz
380V-50Hz
220V-50Hz
380V-50Hz
380V-50Hz
Rated Power 4.2KW 3.2KW 3.2KW 4.5KW 4.8KW
Hopper 12.5L*2 12.5L*2 9.5L*2 9.5L*2 12.5L*2
Cylinder Capacity 2.0L*2 2.0L*2 2.5L*2 2.5L*2 2.5L*2
Expansion System Pump Gravity Gravity Pump Pump
Expansion Rate 45~65% 20~30% 20~30% 35~65% 35~65%
Time For First Cylinder 6~7 min 7~9 min 7~9 min 6~7 min 8~9 min
Production capacity(80g/cup)/H 520 cups 470 cups 500 cups 600 cups 700 cups
Continious Discharging Ability(80g/cup) >=20 cups(Single Cylinder) >=15 cups(Single Cylinder) >=25 cups(Single Cylinder) >=30 cups(Single Cylinder) >=40 cups(Single Cylinder)
Standby Function
Defrosting Function × × × ×
Heating Function × × × ×
Pasteurization Function × × × x
PASMO S520F with Air Pump T
Dual Independent System High Expansion Rate Delicate Taste Intelligent Inverter Technology Low Frozen Cylinder Rate Optional Configuration Gear Type Air Pump System
