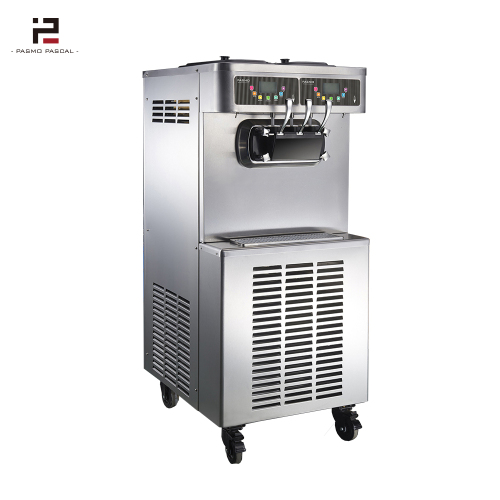

S520F Gravity
Product overview:Gravity model, double system,high capacity soft ice cream machine

Soft start technology:
Prolongs the compressor service life

Standby function/Pre-cooling function:
For both hopper and cylinder, no need to wash machine everyday

Mix-low alarm:
Mix-low indicator light on with sound

Two system:

Two individual system,make operation easier

Hopper Agitator:

Make mix in hopper cooled more evenly,to make product taste better

Do you need an expert
catalogue

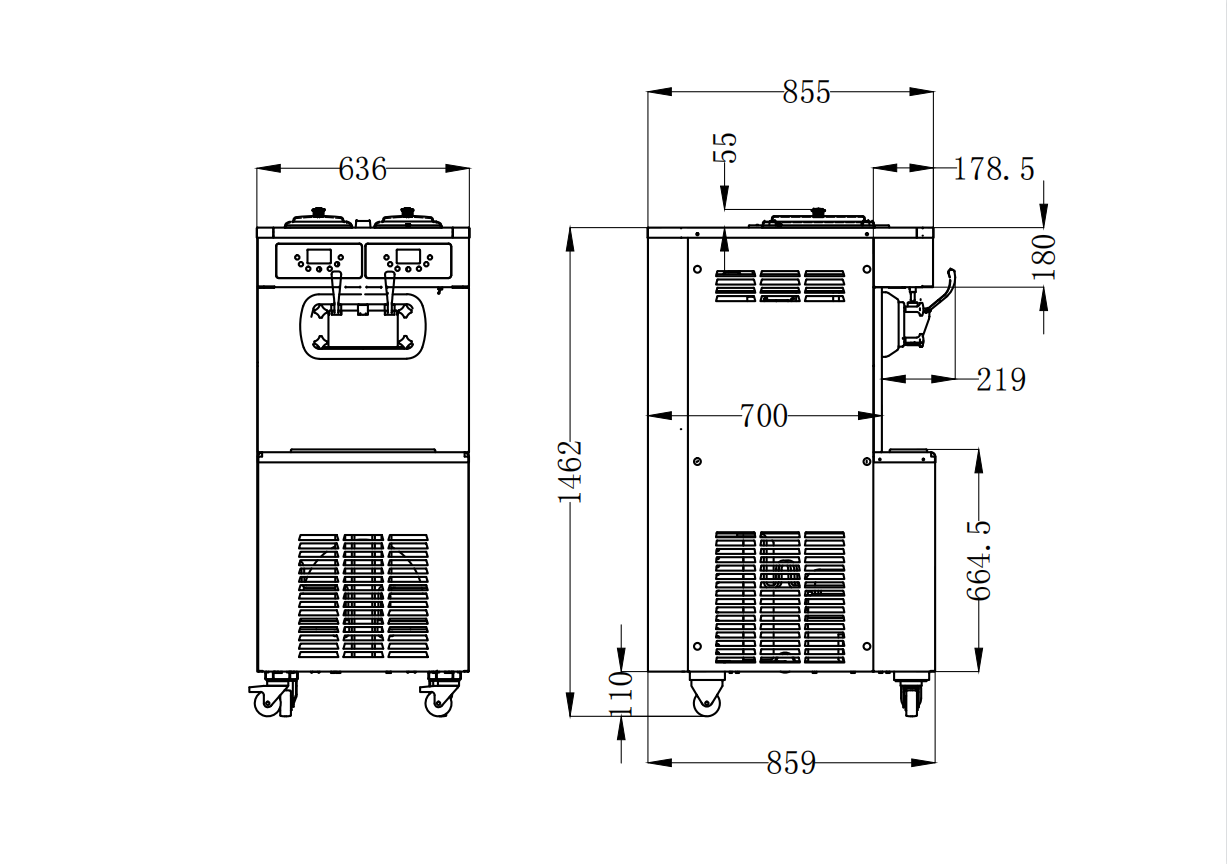

Product size for ice cream machine S520F
Parameter of ice cream machine S520F Gravity
Three flavors vertical soft ice cream machine,high quality with imported accessories,long service life
Machine size: 940*640*1512mm
Packing size: 1100*800*1690mm
S520F Gravity
Features
self check, mix-low alarm,spring handle, make operation easier
S520F Gravity

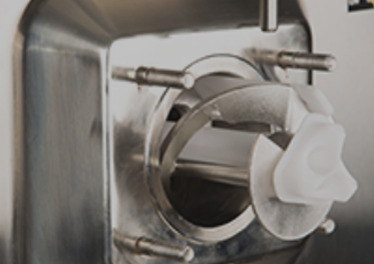

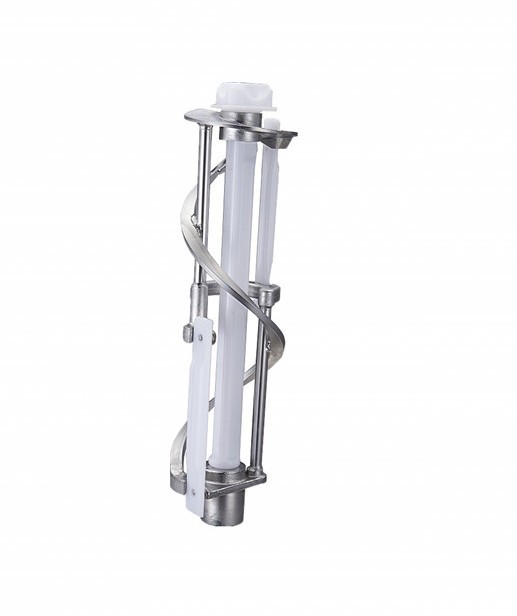

Beater
SS304 food grade stainless steel material
S520F Gravity
Capacity
2*12.5L hopper,2*2.0L cylinder, provide 50L/H ice cream products
S520F Gravity
Voltage type
220V/380V both available,satisfy different country's requirement
S520F Gravity
Stand-by Function
Keep temperature of hopper and cylinder remain 1~4.5 ℃ in evening
S520F Gravity
Noise
Lower noise,provide better feeling when use
S520F Gravity
Core Accessories
Imported from other country,insure the quality of machine
S520F Gravity
After-sale service
Warranty of 1 year for machine,except consumer parts,online support after warranty
S520F Gravity
Control System
User-friendly system,better use feeling
Technical Specifications
We provide different type of high quality machine,to meet different country and different customer's needs
Hopper
2*12.5L
Cylinder
2*2.0L
Flavor
3 flavors(2+1 mix)
Capacity
50L/H
Power
3.2KW
Beater motor
2*550W
N.W.
226Kg
G.W.
241Kg
Gas
R404A or other gas as request
Cooling method
Air cool/ water cool
Production system
Gravity feed
Main compressor
2*3753Btu/Hr, RMBRACO/TECUMSEH
Online Messages
Offers all of the popular soft serve variations from low to non-fat ice creams, custards, yogurt, ltalian ices and sorbet
