S970F with Air Pump
Product overview:Three flavors vertical machine,provide soft ice cream,yougurt,sorbet

Soft start technology:
Prolongs the compressor service life,safer for operator

Standby function:
Keep mix fresh during night,no need to wash everyday

Bottom screen:
Display data directly,easy to observe and adjust

Control System:

Two individual system,save more energy,easy to operate

High capacity:

66L/H capacity can meet need even in peak time

Do you need an expert
catalogue

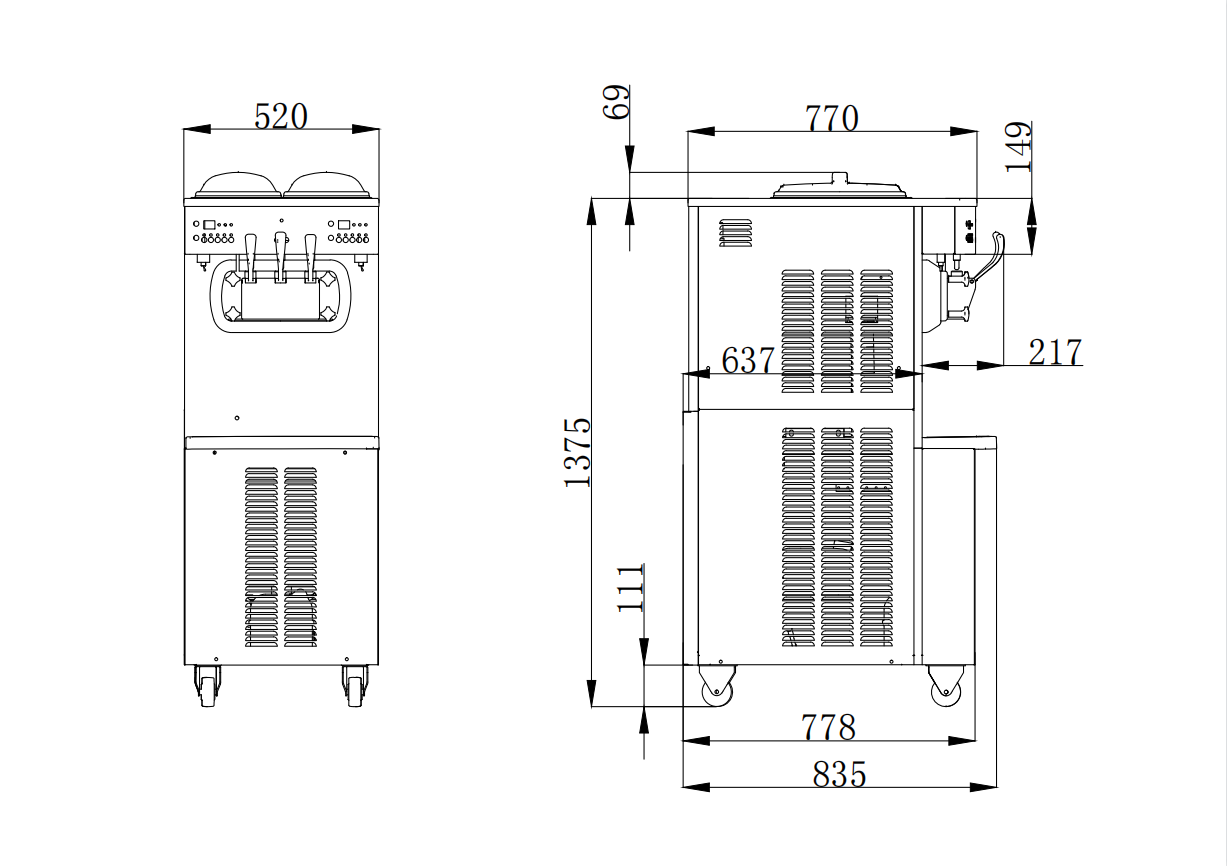

Product size for ice cream machine S970F
S970F Air Pump System
Different shape of dispense available,make different type ice cream cone
Machine size: 770*520*1444mm
Packing size: 890*650*1590mm
S970F with Air Pump
Features
Passed many certification,like CE/CB/ETL/ISO 9001,to provide high quality machine
S970F with Air Pump
Self-Check
Self detection function,show wrong code if happened
S970F with Air Pump
Direct Drive Transmission
Save more energy,make lower noise
S970F with Air Pump
Voltage Type
220V and 380V available,50Hz and 60Hz optional
S970F with Air Pump
Pre-cooling function
Keep temperature remain 1-4.5℃ of the hopper and cylinder
S970F with Air Pump
Noise level
Lower noise,can use in quiet place
S970F with Air Pump
Core Accessories
Imported core parts(such as compressor),prolong service life
S970F with Air Pump
After-sale service
Manual send with machine,operation video also will be send,video chat available if necessary
S970F with Air Pump
Machine Inner System
User-friendly digital control system
Technical Specifications
Adjustable Air pump gear,satisfy different passenger flow
Hopper
9.5L*2 with agitator
Cylinder
2.5L *2
Flavor
3 flavor
Capacity
66L/H
Power
4.5KW
Beater motor
2*0.55KW
N.W.
246kg
G.W.
261kg
Gas
R404A or other gas as request
Cooling method
Air cool/ water cool
Production system
air pump
Main compressor
2*4094Btu/Hr, R404a from Embraco
Online Messages
Offers all of the popular soft serve variations from low to non-fat ice creams, custards, yogurt, ltalian ices and sorbet
